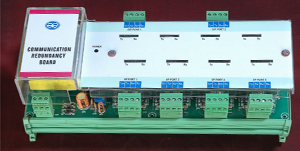

  Communication Redundancy Board
Product Name :  ACRB       Data Sheet


The Communication Redundancy Board is RS 422/485 REDUNDANCY SWITCH. It has optical isolation that protects one segment of network from problems that arises on the other. Data can be switched over to the Output from either of the port depending on the corresponding data coming from the terminal server port.The model supports for RS 422/RS 485- 4 wire/RS 485- 2 wire.( Jumper Link selectable).

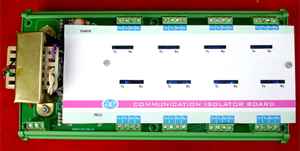

  Communication Isolation Board
Product Name :  ACIB       Data Sheet

The Communication Isolator Board is high speed RS 422/485 Isolator . The optical isolation protects one segment of your network from problems that arises on the other. The model supports for RS 422/RS 485- 4 wire/RS 485- 2 wire.( Jumper Link selectable).

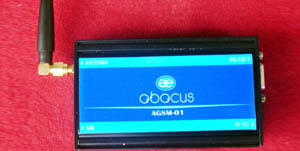

  GSM Modem
Product Name : AGSM - 01       Data Sheet


Agsm- 01 (gsm modem) The GSM/GPRS Modem mostly fits the need of data transfer, with SMS data Communication, GPRS data navigation, Circuit Switch / Data Connectivity, TCP/IP Protocol etc. Because the easy setting up in SCM (Single Chip Micyoco), it is convenient for network data communication. The MOD 9001 GSM/GPRS Modem with small size, which fits both, embedded application and external peripheral equipment. The AT command set and RS232 interface will offer easy data connection without any extra circuit control.

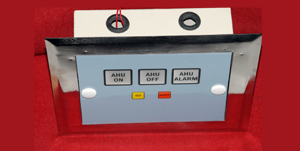

  Alarm Annunciator
Product Name :  ACON AA - 01       Data Sheet

THE MODEL ACON AA - 01 IS THE ALARM ANNUNCIATOR WHICH SOUNDS BUZZER IN THE CONDITIONS LIKE FIRE.

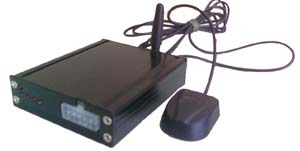

  Vehicle Tracking System
Product Name : ACON VTS - 01       Data Sheet

GPS based satellite tracking. GPRS based web enable information. One institute or firm having unique username and password.Three views are available like Map / Satellite / Hybrid.Hands free Voice communication facility available for driver with control room (optional).Easy report generation.Monthly data backup facility. vehicle Facility to measure speed and distance travelled. Work on any GPRS service provider.In built rechargeable battery.Generate SMS and send to control room after power cut and for any foul tempering of device or your vehicle.Remotely secured configuration.

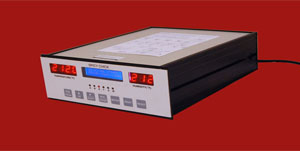

  Hatching Controller
Product Name :  SPICY CHICK       Data Sheet

A spicy Chick is a device, which is used for the Egg Hatching purpose. This device controls the Temperature and the Humidity required for the Egg Hatching in the poultry farm with the data logging of around 60 days with the facility of hard copy through printer. The added advantage of this unit is, you can take the per hour update on your mobile phone by simply connecting the GSM MODEM to the Hatching Controller unit.

  Data Logger System

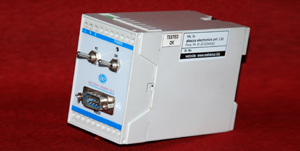

Product Name : ACON MMC- 01       Data Sheet


THE ACON MMC-01 is UNIT BUILD for dataloging purpose. Data can BE SRORED IN MMC CARD through RS232 serial port and the same can retrieved. Baud-rate is fixed for DATA TRANSFER.

Customized Products
Token Display
Customised Human Machine Interface
Long distance Connectivity Products
Multilexers
Infrared to Serial Converter
Actuator Controller
MIMIC System
Serial to memory Device(up to 1GB)
Micrometer Screw Gauge to PC interface
Dial Gauge to PC interface
Display & Indicators
  RS 232 INDICATOR
Product Name :  ACON S - 01       Data Sheet


THE MODEL ACON -S 01 IS SERIAL PORT TESTER USEFUL TO DEBUG SERIAL PORTS. IT SHOWS ALL 9 SIGNALS.

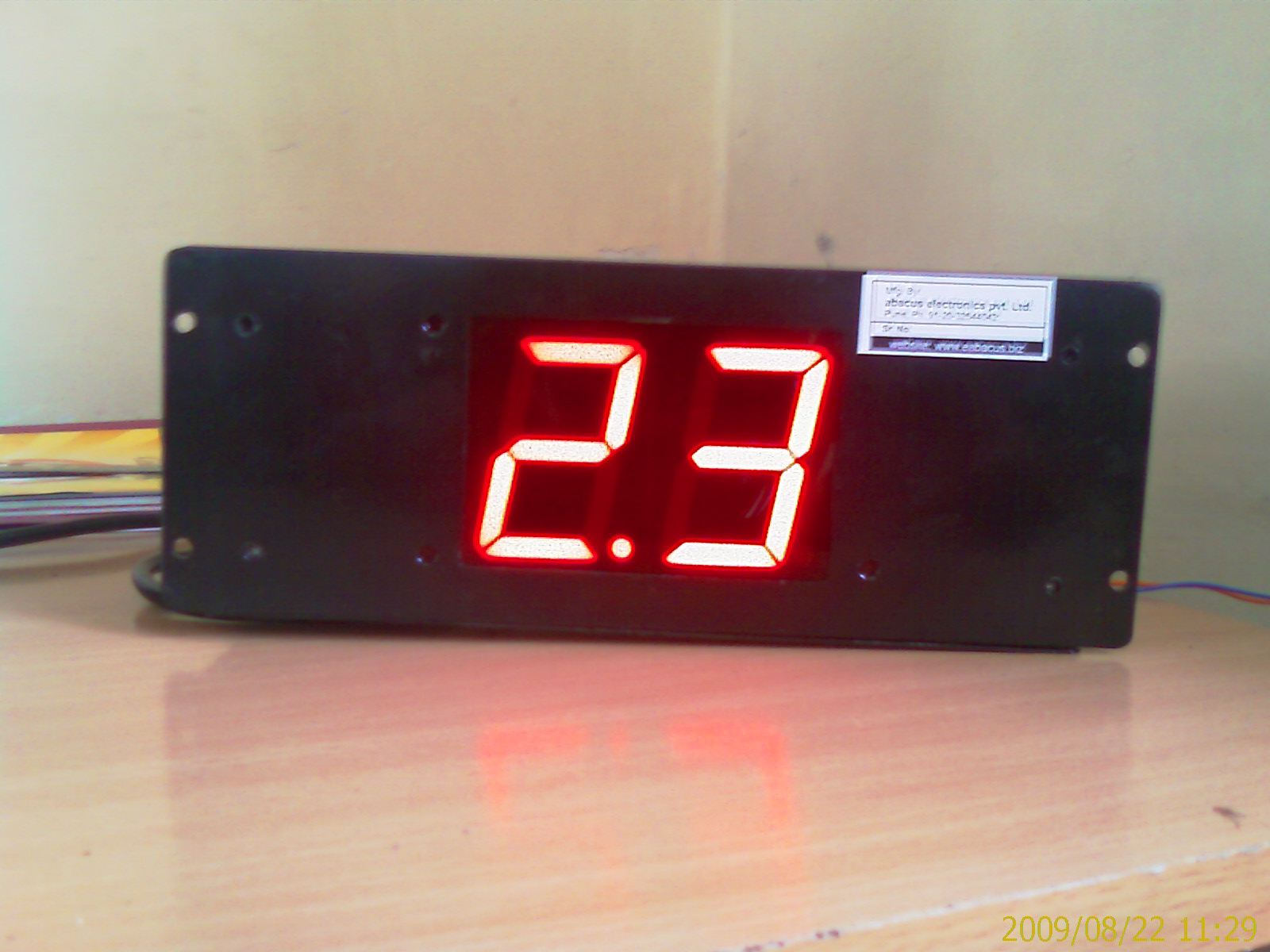

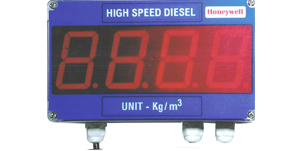

  Modbus Display
Product Name :  ACON MD - 01       Data Sheet


THE MODEL ACON MD-01 IS THE SEVEN SEGMENT DISPLAY WITH MODBUS COMMUNICATION


  Alphanumaric Dot Matrix Display

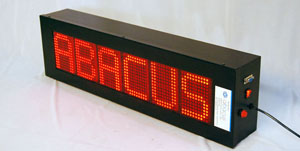

Product Name : ACON AND - 01       Data Sheet

THE MODEL ACON AND-01 IS THE ALPHANUMERIC DOT MATRIX DISPLAY WITH RS 232 (SERIAL) COMMUNICATION.

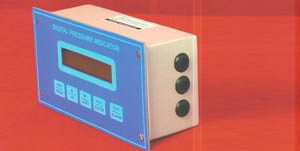

  Digital Indicator
Product Name :  AIND - 01       Data Sheet


THE MODEL AIND -01 IS A DIGITAL INDICATOR WITH 4 TO 20 MA /0-10 V INPUT AND AUDIO VISUAL ALARM. .

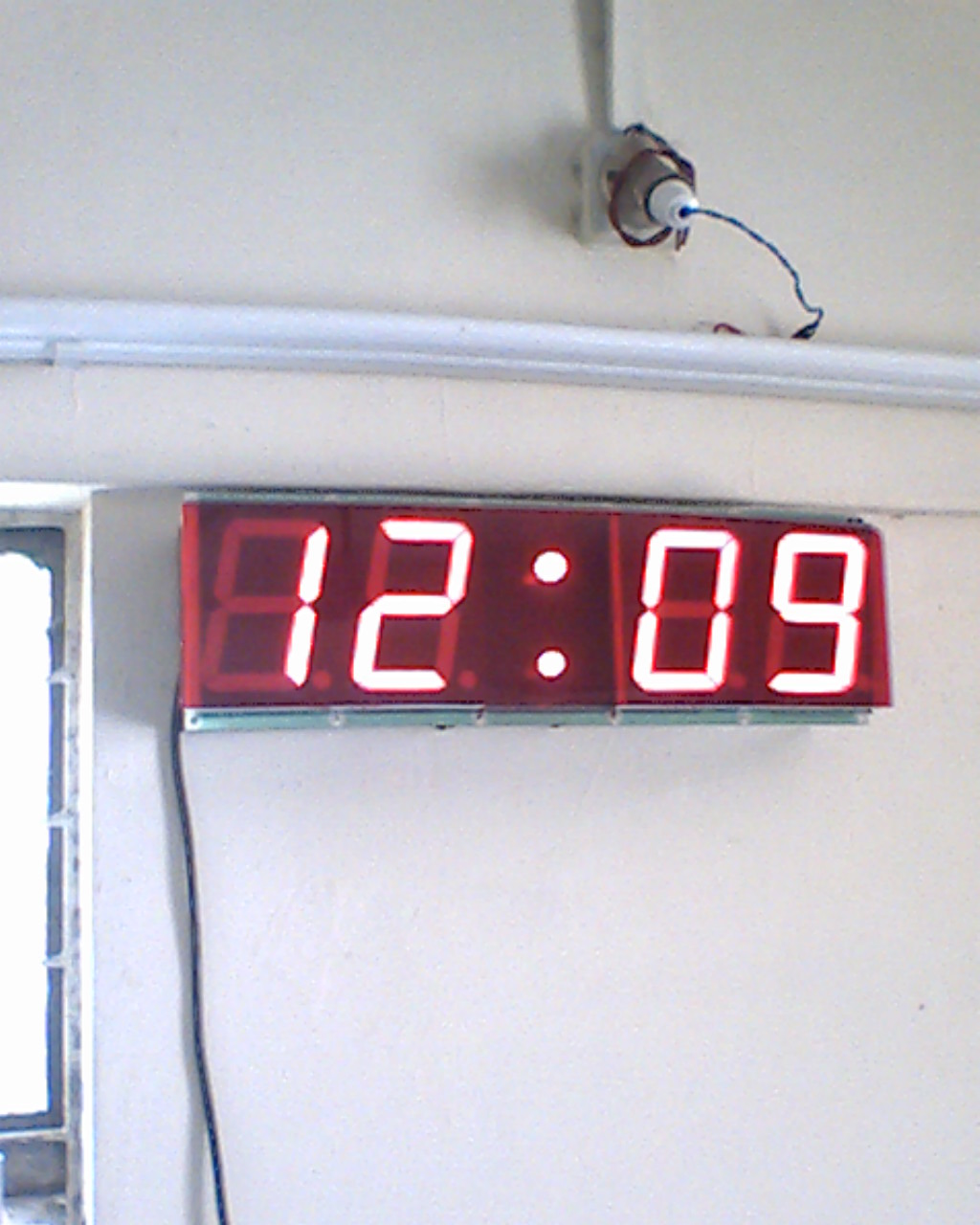

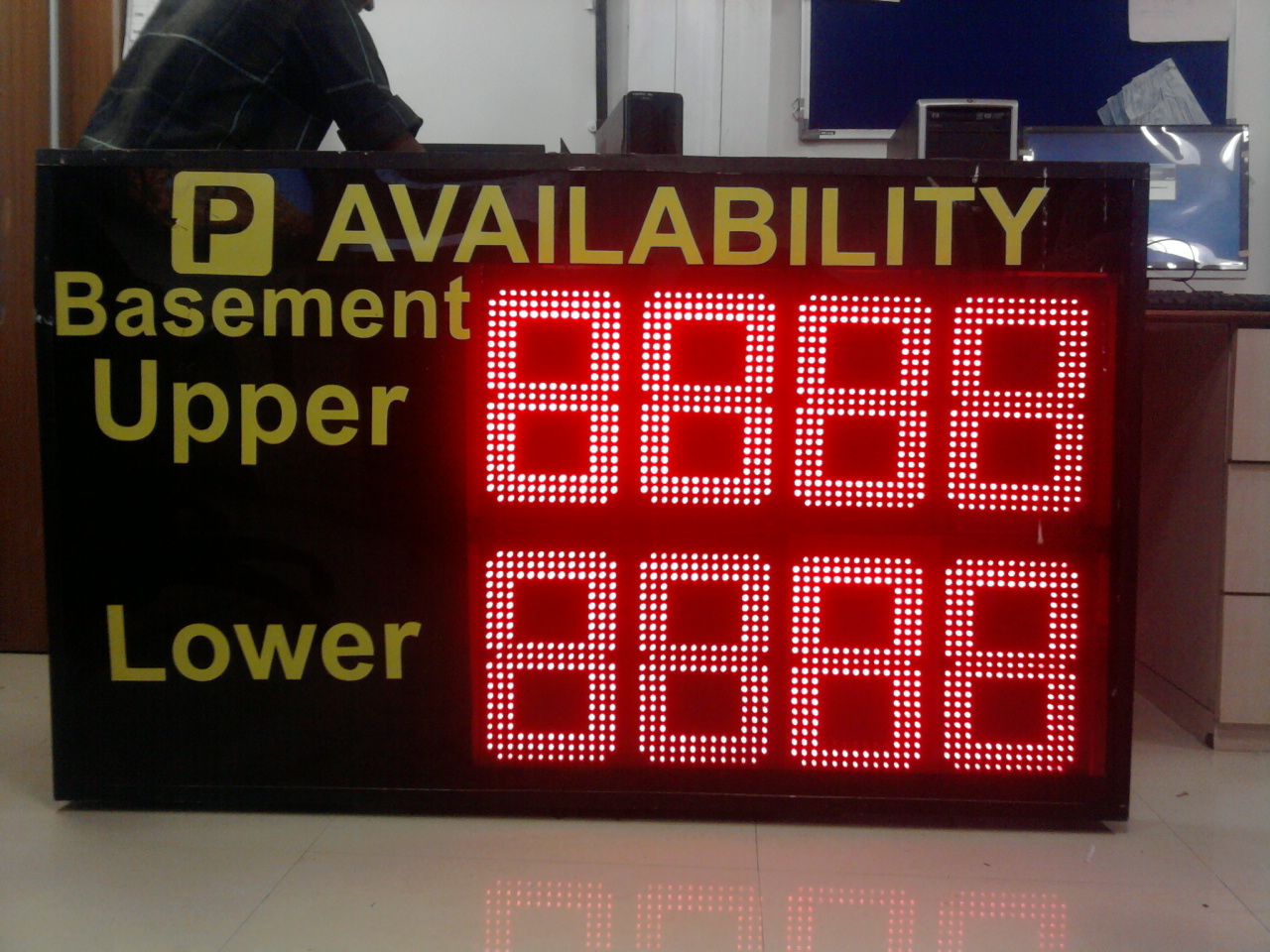

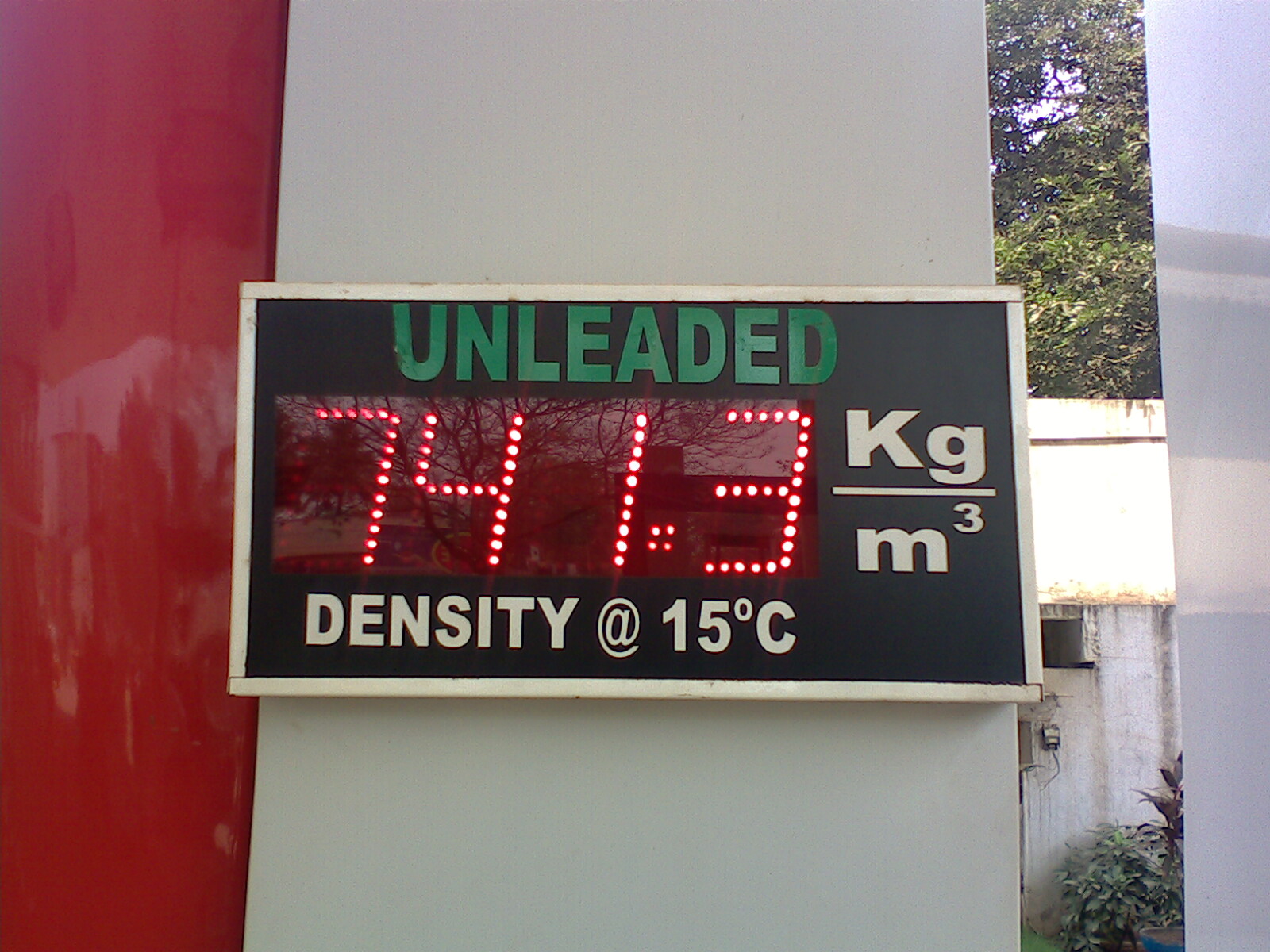

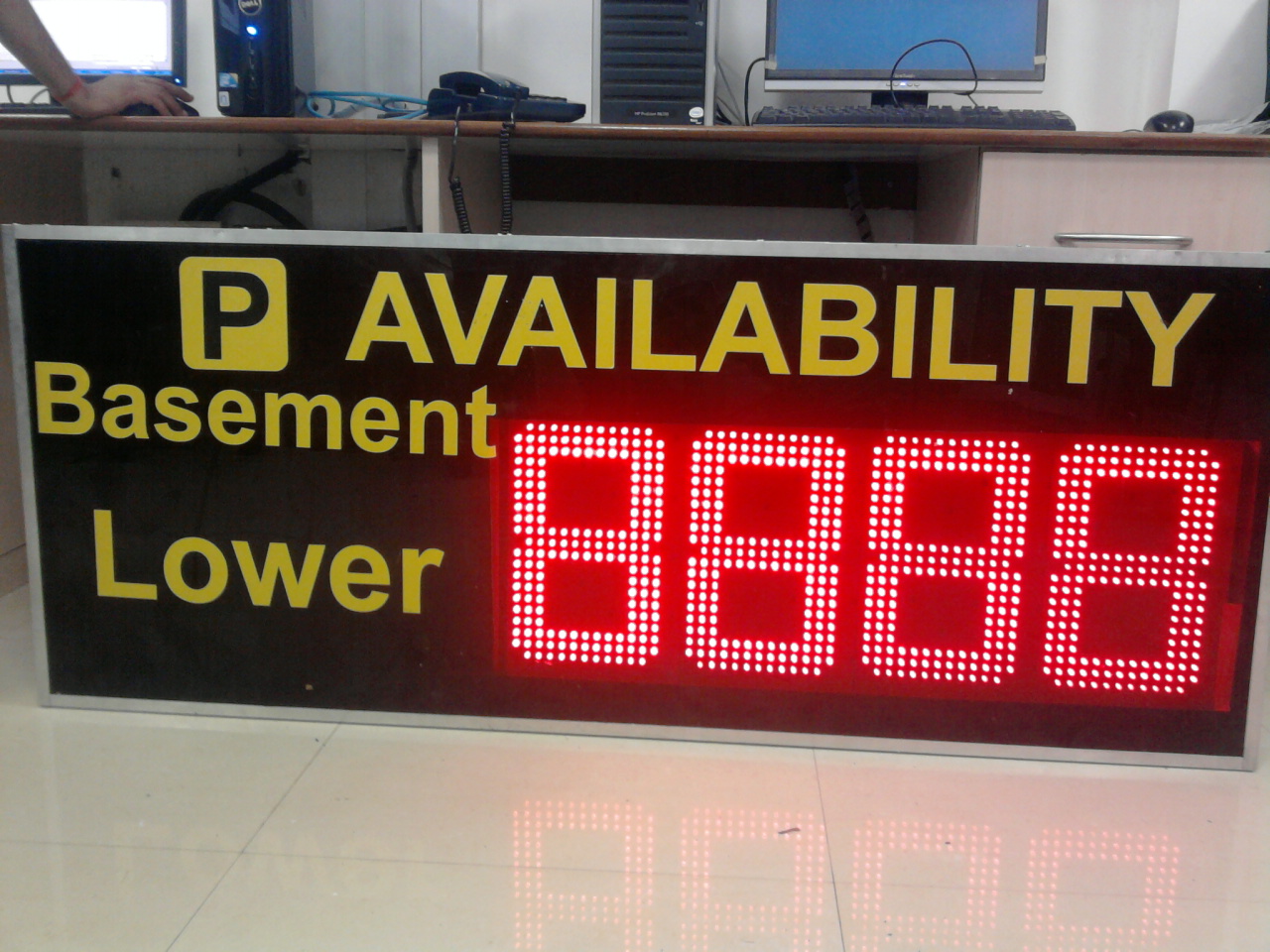

  Scrolling Displays
Product Name : Scrolling Displays [ Wired and Wireless]
  Sample Displays














Protocols Converters / Gateway

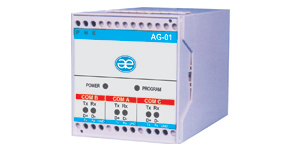

  ACON AG-01
Product Name : ACON AG-01   Data Sheet

ACON AG-1 IS A DEVICE, WHICH IS USED AS A PROTOCOL CONVERTER BETWEEN TWO SERIAL DEVICES ALONG WITH EXTERNAL DIGITAL INPUTS INTERFACE FACILITY.
  PRODUCT HAS FOLLOWING VERSIONS AVAILABLE.
MODBUS ASCII TO MODBUS RTU CONVERTER
HONEYWELL ABC TO MODBUS PROTOCOL CONVERTER
MODBUS MASTER TO MODBUS MASTER CONVERTER
MODBUS SLAVE TO MODBUS SLAVE CONVERTER
ANY PROPRIETARY ASCII TO MODBUS CONVERTER
MODBUS MASTER TO TWO PORT REDUNDANCY & CONVERSION
ANALYZER PROTOCOL THERMO / PANAMATRIC/SPM/AK/MAIHAK/ABB TO MODBUS & REDUNDANCY.
MODBUS MASTER TO MODBUS MASTER CONVERTER

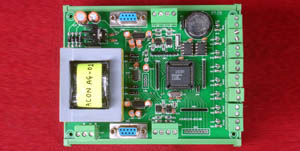

  ACON AG- 02
Product Name : ACON AG- 02   Data Sheet
ACON AG-2 IS A DEVICE, WHICH IS USED AS A PROTOCOL CONVERTER BETWEEN TWO SERIAL DEVICES ALONG WITH EXTERNAL DIGITAL INPUTS INTERFACE FACILITY.
  PRODUCT HAS FOLLOWING VERSIONS AVAILABLE.
8 DIGITAL I/O INTERFACE
RTC, EPROM
RS 232/485 (2W, 4W) INTERFACE
. Any Protocol to GPRS Connectivity Products   Data Sheet
. [ATG Gateway] Serial to GSM Connectivity solution. For Example FTP,SMS.
. Web Enabled Products
Interface Converter
  USB TO RS232 CONVERTER (NON-ISOLATED)

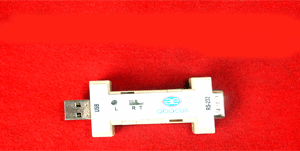

Product Name :  ACON U - 03       Data Sheet

THE MODEL ACON U-01 IS USB BUS POWER, HIGH SPEED USB TO RS232- CONVERTER. IT SUPPORTS AUTO BAUD RATE

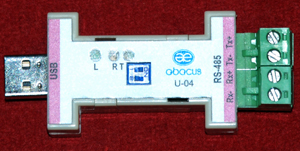

  USB to RS 485 Converter (Non-Isolated)
Product Name :  ACON U - 04       Data Sheet


THE MODEL ACON U-04 IS USB BUS POWER, HIGH SPEED, USB TO RS485- (2 WIRE /4 WIRE) CONVERTER. IT SUPPORTS AUTO BAUD RATE.


  USB to RS 232 / RS 485Converter (Isolated)

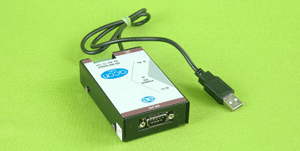

Product Name : ACON U - 01       Data Sheet

THE MODEL ACON U-01 IS USB BUS POWER, HIGH SPEED, USB TO RS232 / RS485- (2 WIRE /4 WIRE) CONVERTER. IT SUPPORTS AUTO BAUD RATE.
  USB to RS 232 Converter (Isolated)

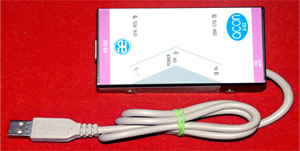

Product Name :  ACON U - 02       Data Sheet


THE MODEL ACON U-02 IS USB BUS POWER, HIGH SPEED, and USB TO RS232- CONVERTER. IT SUPPORTS AUTO BAUD RATE.


  RS 232 to RS 485 Converter
Product Name : ACON E - 02       Data Sheet

THE MODEL ACON E-02 IS HIGH SPEED RS 232 TO RS 485 CONVERTER SUPPORTING AUTO BAUD RATE.
  RS 422/485 Isolator / Repeater
Product Name :  ACON R - 01       Data Sheet


THE MODEL ACON R-01 IS HIGH SPEED RS 422/485 ISOLATOR (REPEATER). IT BOOSTS RS 422/485 SIGNALS UP TO 1.2 KM. OVER ONE OR TWO TWISTED PAIR.

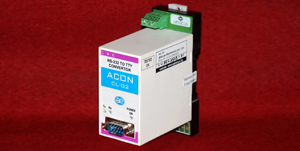

  RS 232 To Current Loop Converter(TTY)
Product Name : ACON CL- 02       Data Sheet

THE MODEL ACON-CL-01 IS HIGH SPEED RS 232 TO CURRENT LOOP CONVERTER. THIS CURRENT LOOP CONVERTER IS SUITABLE FOR DISTANCES UP TO 1.2 KM. OVER TWO TWISTED PAIR. THE MODEL SUPPORTS ACTIVE AS WELL AS PASSIVE PORT. (DIP SWITCH SELECTABLE).

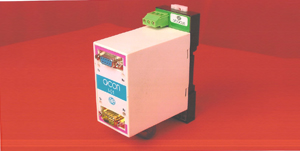

  RS 232 Isolator
Product Name :  ACON I - 01       Data Sheet

ACON I-01 IS USED FOR PROVIDING ISOLATION TO SERIAL [RS232] INTERFACE. THE OPTICAL ISOLATION PROTECTS ONE SEGMENT OF YOUR NETWORK FROM PROBLEMS THAT ARISES ON THE OTHER

  Serial To Fiber Optic Converter
Product Name : ACON FC - 01       Data Sheet

MODEL ACON FC -01 IS SERIAL TO FIBER OPTIC CONVERTER FOR MULTIMODE FIBER CABLE.

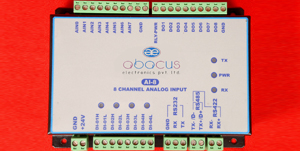

  8 Channel Analog Input
Product Name :  ACON AI - 8       Data Sheet

Eight 16-bit analog input channels of 0 – 10V input range. Internal hardware and software calibration capabilities. Programmable PGA of eight gains setting from 1x to 128x. Burn out current source for detecting open circuit and short circuit of the sensor.




  Serial To Wireless Converter
Product Name : ACON W - 01       Data Sheet


WIRELESS (XBEE) IS A SERIAL TO WIRELESS CONVERTER} The XBee modules operate within the ZigBee protocol and support the unique needs of low-cost, low-power wireless sensor NETWORKS. The XBee module interface to a host device through a logic level asynchronous serial port. Through its serial port, the module can communicate with any logic and voltage compatible UART or through a level translator to any serial device. The module OPERATES within the ISM 2.4 GHz frequency band.

  Analog to Serial Converter (modbus)
Product Name :  ACON AMOD - 01       Data Sheet

The model ACON AMOD-01 IS 4 to 20 / 0 to 10 v input to Modbus converter.

  Ethernet to RS 232 / RS 485 Converter

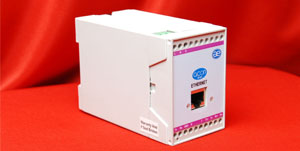

Product Name : ACON ET - 01 (port - 1)       Data Sheet


ACON ET- 01 (ETHERNET TO RS232 / RS485 CONVERTER) IS USED TO PUT DEVICES ON NETWORK SO THAT THE REMOTE DEVICES CAN BE MADE EASILY ACCESSIBLE THROUGH NETWORK COMMUNICATION.
  Ethernet to RS 232 / RS 485 Converter

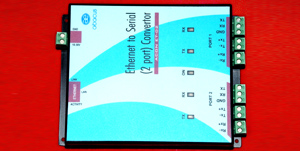

Product Name :  ACON ET - 02 (port - 2 )       Data Sheet

ACON ET- 02 (ETHERNET TO RS232 / RS485 CONVERTER) IS USED TO PUT DEVICES ON NETWORK SO THAT THE REMOTE DEVICES CAN BE MADE EASILY ACCESSIBLE THROUGH NETWORK COMMUNICATION.IT HAS 2 PORTS. PORT1 & PORT2.

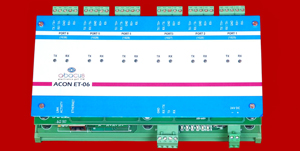

  Ethernet to RS 232 / RS 485 Converter
Product Name : ACON ET - 06 (port - 6)       Data Sheet

ACON ET- 06 (ETHERNET TO RS232 / RS485 CONVERTER) IS USED TO PUT DEVICES ON NETWORK SO THAT THE REMOTE DEVICES CAN BE MADE EASILY ACCESSIBLE THROUGH NETWORK COMMUNICATION. IT HAS 6 PORTS. PORT1 TO PORT 6.

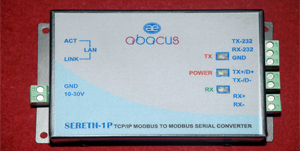

  Modbus TCP \IP to Modbus Serial Converter
Product Name :   SERETH-1P       Data Sheet


This board is a Modbus TCP/IP to Serial Modbus converter board. This board is very useful for connecting a serial device, with modbus protocol, to an Ethernet based SCADA system. There are three types of isolated serial outputs available (i.e. RS-232, RS-485, RS-422). It converts received TCP/IP modbus command to serial modbus for mat and sends to serial slavede vice( s)connected to it and also CONVERTS RESPONSE FROM SLAVE, IN serial to MODBUS FORMAT, TO Modbus TCP/IP format and sends to master over Ethernet .
